What is a Long and Short Pin Horizontal Insertion Without Earth Wire Universal Gas Thermocouple?

Long and Short Pin Horizontal Insertion Without Earth Wire Universal Gas Thermocouple: An Overview

A thermocouple is a type of temperature sensor that is commonly used in gas appliances such as boilers, water heaters, and ovens to detect the temperature of the flame. The thermocouple generates a small electrical signal that is used to control the gas valve, ensuring that the gas flow is shut off if the pilot light goes out.

There are many different types of thermocouples available on the market, each with its own set of features and benefits. One such type is the long and short pin horizontal insertion without earth wire universal gas thermocouple, which is designed to be inserted horizontally into the gas appliance and does not require an earth wire.

The long and short pin horizontal insertion without earth wire universal gas thermocouple consists of two dissimilar metal wires, typically made of nickel and chromium, that are welded together at one end to form a junction. The other end of the wires is connected to a voltmeter or other measuring device that is used to read the electrical signal generated by the thermocouple.

The long and short pin design of this type of thermocouple allows for easy installation in a variety of gas appliances. The short pin is designed to fit into the gas valve, while the long pin extends into the flame to detect the temperature. This design ensures accurate temperature readings and reliable performance.

The absence of an earth wire in this type of thermocouple makes installation easier and more cost-effective, as there is no need for additional wiring or grounding. However, it is important to ensure that the gas appliance is properly grounded to prevent any electrical hazards.

The long and short pin horizontal insertion without earth wire universal gas thermocouple is a durable and reliable temperature sensor that is widely used in the gas industry. It is designed to withstand high temperatures and harsh environments, ensuring that it provides accurate readings and consistent performance over time.

In conclusion, the long and short pin horizontal insertion without earth wire universal gas thermocouple is a valuable tool for maintaining the safety and efficiency of gas appliances. Its simple design, ease of installation, and reliable performance make it a popular choice for gas technicians and appliance manufacturers alike. If you are in need of a thermocouple for your gas appliance, consider the long and short pin horizontal insertion without earth wire universal gas thermocouple for accurate and dependable temperature readings.

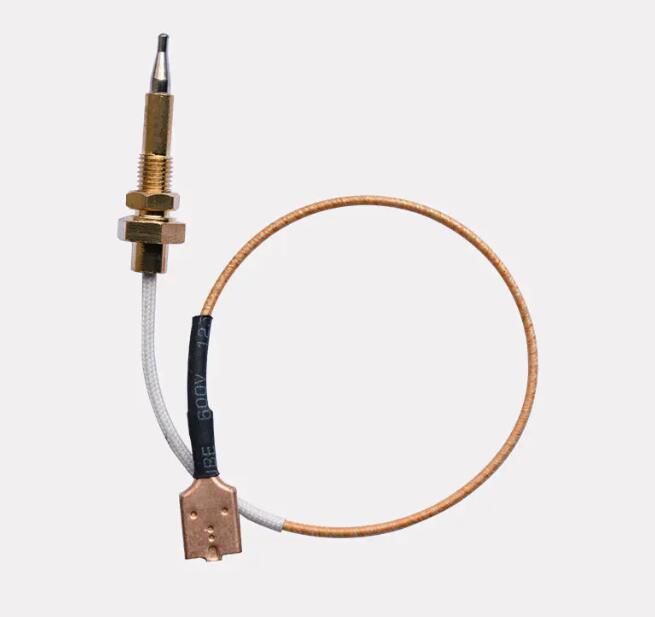

Long and Short Pin Horizontal insertion without earth wire universal gas thermocouple
